Clinical Chemistry Analyzer
Precision . Simplicity . Performance
“For the past 30 years, semi-auto clinical chemistry analyzer remainded struck in the same outdated, Boxy design”
We set out to change
The Aris 100 redefines expectations with a sleek, modern form and unparalleled performance
Seamless Workflow Unmatched Precision
- Ergonomic and modern aesthetics for ease of use.
- Intuitive user experience for fast operation.
- Maintenance-free optics for relaible performance.
- High Precision flow-cell technology for accurate results.

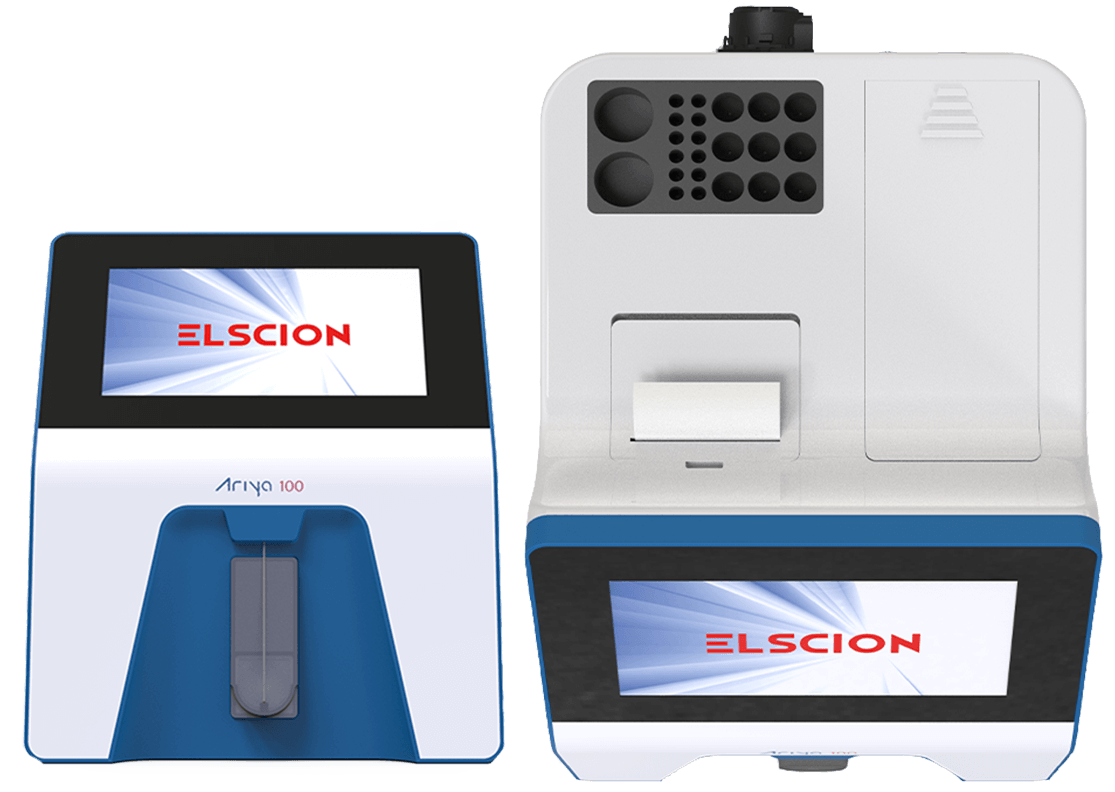

ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
Seamless
Precise
Versatile
Technical Specifications
Photometric System
Photometric Range
-0.2 to 3.0 A
Wavelengths
6 Standard Filters 340, 405, 505, 546, 578, and 630 nm
(2 optional positions)
(2 optional positions)
Bandwidth
± 5 nm
Light Source
12 V/20 W Halogen Lamp
with auto sleep function
with auto sleep function
Lamp Maintenance
User-enabled Lamp replacement
Flowcell
Flow-cell Volume
32 µL (10 mm path length)
Reaction Volume
400 µL (Recommended)
Fluidic System
Sipper Volume
250–5000 µL
Sipper Indicator
Aspiration Indicator Light
Purge Function
Air Purge between Tests to Prevent Carry-over
Calibration Methods
- Factor
- Automatic 1-Point Standard
- Automatic 2-Point Standard
- Automatic Linear Regression (up to 6 Standard)
- Automatic Point-to-Point (up to 6 Standard)
- Automatic Multi-Calibration (up to 6 Standard)
- 3PL (2 point-Calibration Non-Linear)
- 4PL and Non-Linear Regression (e.g. Cubic Spline)
Method Options
- Absorbance, Endpoint, Kinetics, and Fixed-Time
- Sample Blank Option Available
- Options to Perform Test with or without a Reagent Blank
- Mono-Chromatic and Bi-chromatic
- Turbidimetric
Quality Control
QC Level
Multi-Level QC per test
Plot Option
Levey-Jennings (L-J) control plot
Error Detection
Westgard rules-based High/Low flagging
Temperature Control
Flowcell System
Peltier-based system with RT, 25 °C, 30 °C, and 37 °C
Dry Incubator
Maintain 37 °C with 14 positions (Optional)
Temperature Accuracy
±0.1 °C
Device Specification
Power
100–240VAC, 50–60Hz, 120W
Weight
5 kg
Dimension
340 mm (L) x 270 mm (W) x 160 mm (H)
Operational Condition
Temperature 0 °C to 40 °C,
Humidity up to 80%
Humidity up to 80%
User Interface & Storage
Display
7" Capacitive TFT Touch Display
Printer
Built-in 58 mm Thermal Printer
Storage
100,000 Patient results,
Unlimited QC levels & calibration history
Unlimited QC levels & calibration history
User Programming
Test capacity
Up to 200 user defined Tests
Multi-mode operation
• Biochemistry
• Turbidimetry
ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
Maintenance Free-Optical System
Accurate Temperature
Precise Pumping
Precision You Can Trust
- Unmatched Precision (< 1%)
- High Repeatability
- Low Carry-Over (< 1%)
- Accuracy (99%)

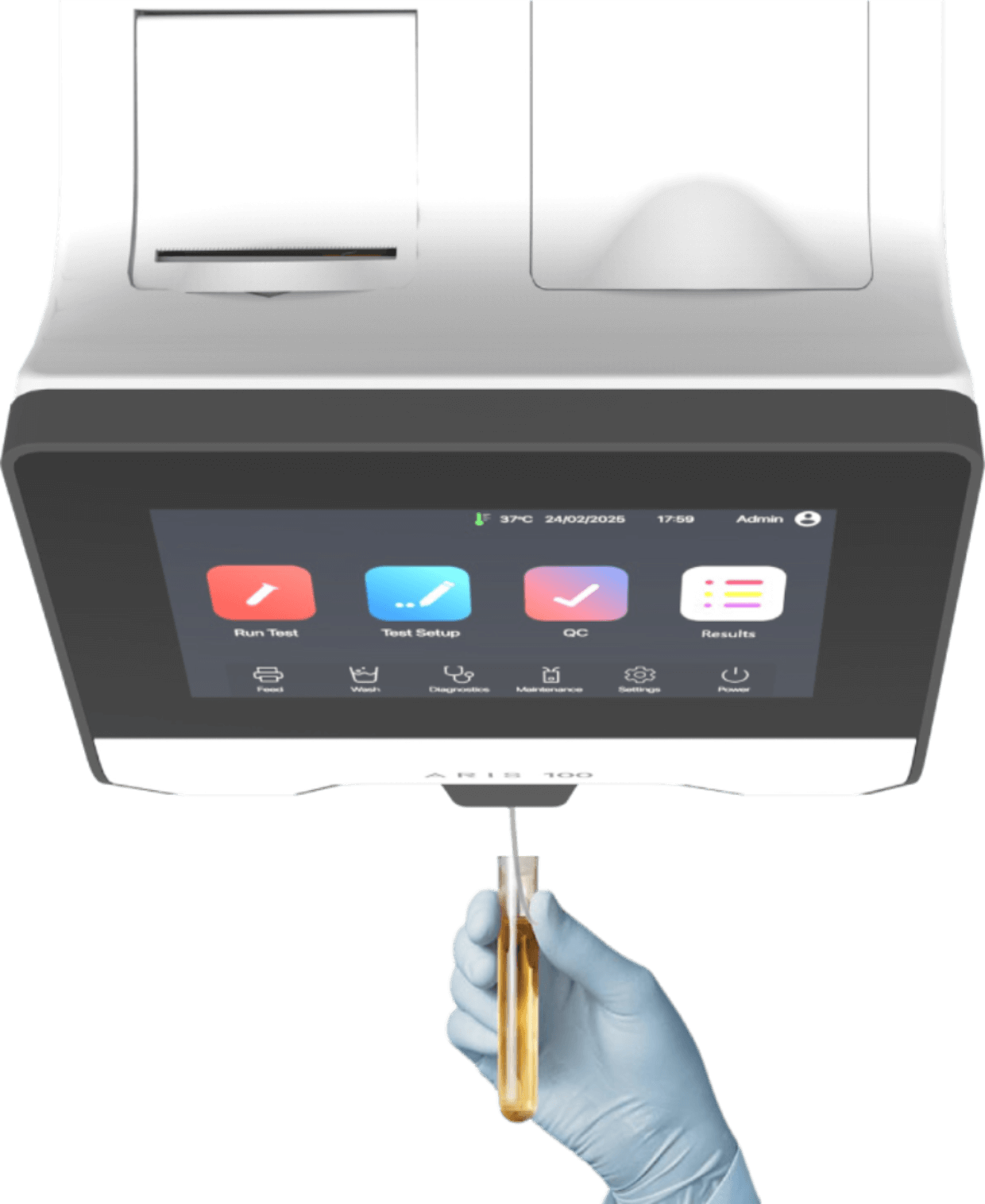

Smartphone-Inspired User interface
- Designed for Speed & Simplicity
- 7″ Intuitive User Interface
- Visually Empowered Icons
- Super Responsive Touch Display
ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
Test with confidence
Every Time
ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
Steady. Reliable. Accurate
ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
Compact & Powerful
Ideal for Labs of All Sizes
ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
“It’s not another re-branded box this is designed & built from the groundup”
ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
Exclusive Features Not Offered Elsewhere
Multiple users Entry
Visualize Lamp Life
Inbuilt Timers
Enditable Standards
High Sample Alert Dilution Recommendation
LJ Plot/Westgard Rules

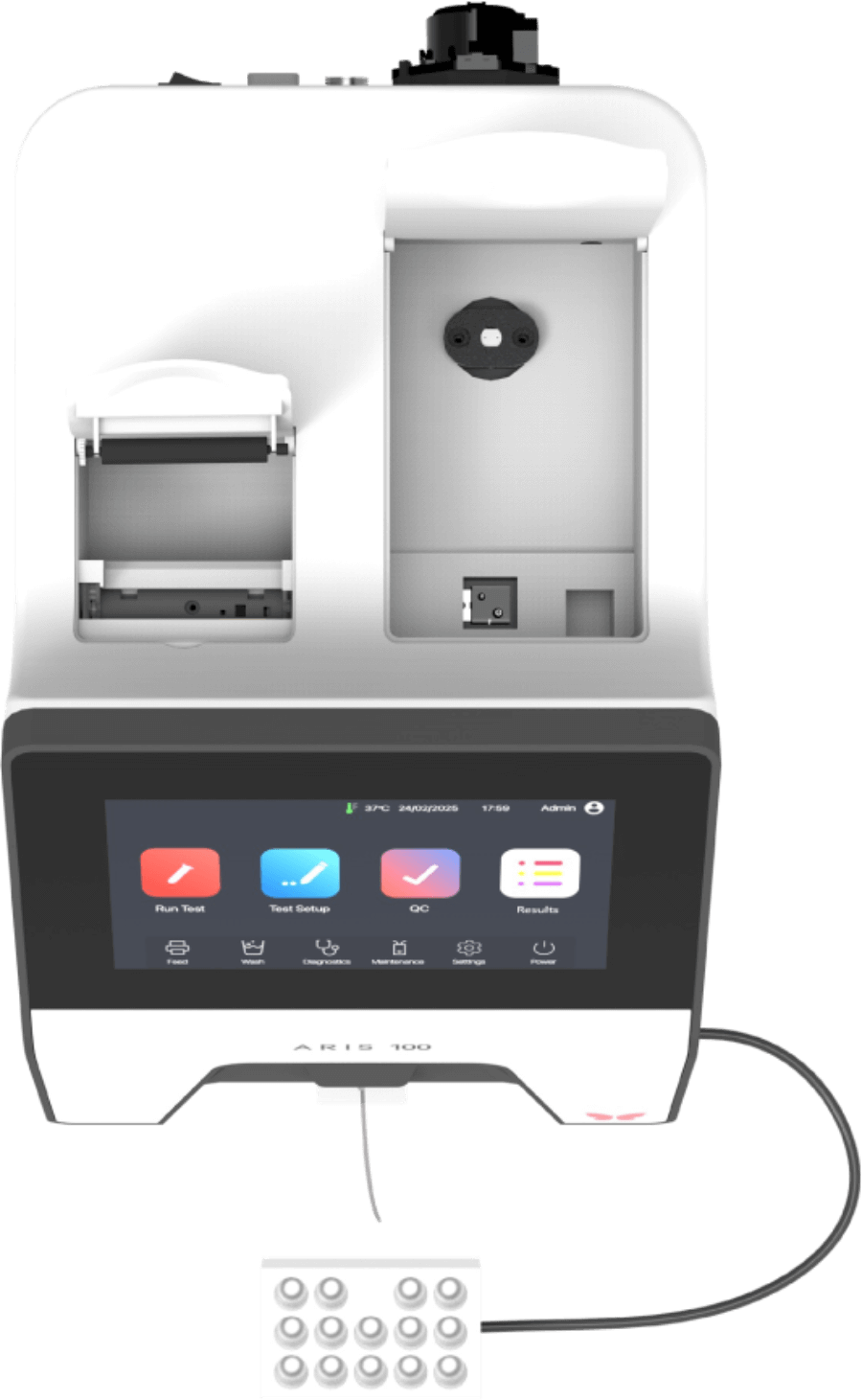

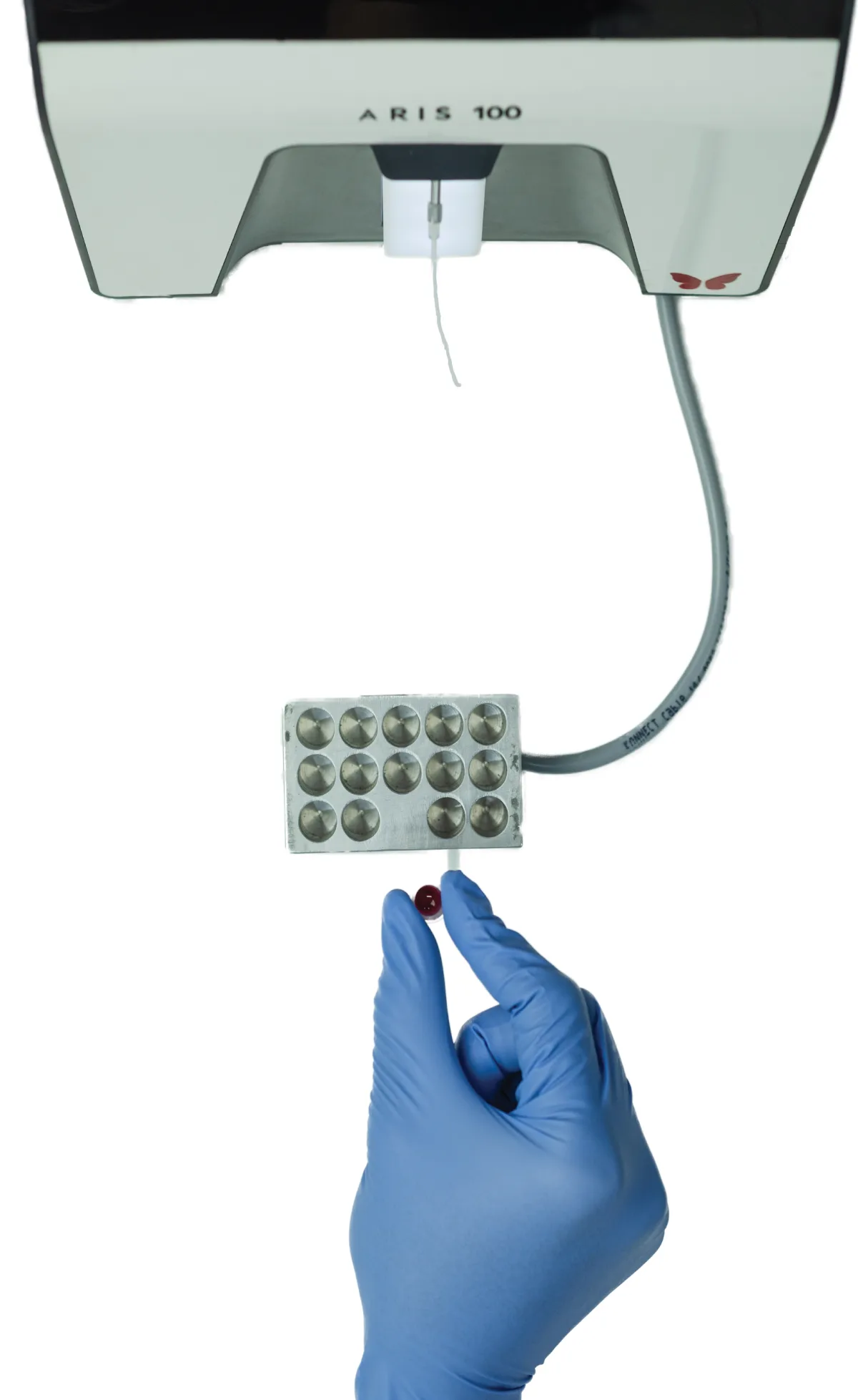

External Incubator (Optional)
- No heat build-up
- Stable Lamp for repeatable results
External Incubator (Optional)
- No heat build-up
- Stable Lamp for repeatable results
ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
Designed For Portability Saving Lab Space
ARIS 100
A Semi-Automated Clinical Chemistry Analyzer
Built-In Lamp Replacement Indicator
Aris 100 is the only clinical chemirsty analyzer that alerts you when its time to replace the lamp, ensuring uninterrupted performance.
Hand Shacked to Perfection
- Our Clinical Chemistry reagents are tailored
- for ARIS 100 to deliver superior
- Performance and Accuracy
Coming Soon...
Download the Brochure
- Get a complete overview of ARIS 100.
- Learn about its advanced features,
- cutting-edge design,
- and how it enhances lab efficiency.
